Gauge/Root Valves

in stock

Feature

  • Available in SS316
  • Heat Code Traceable to certified material test report
  • Rolled and plated threads for greater strength and smoother operation.
  • Packing below the threads prevents lubricant washout.
  • Bar Stock Body straight pattern
  • 1/2″ and 3/4″ Male to 1/2″ Female end connections
  • 1/2″ Female gauge port standard
  • Non rotating self centering stem tips
  • Every valve is factory tested

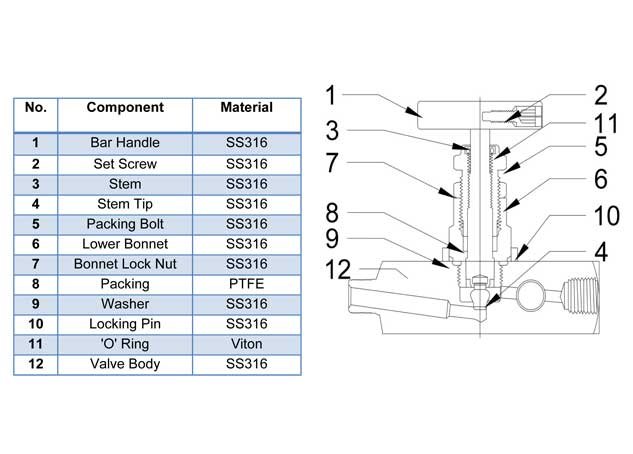

Material Specification

gauge root valve exporter

Outer Dimensions

gauge root valve supplier

Operating Parameters

Pressure Rating : Up to 6000 psig (408 bar) at CWP
Temperature Rating : -54c to 232c

Application

  • General Plant Service
  • Instrument isolation
  • Hydraulic and pneumatic
  • Venting
