Material
Low Pressure Ball Valves
in stock
- High Flow capacity in Compact size Valves.
- Balls are Blow out proof.
- 100% factory Tested.
- Super finish Ball for effective sealing.
- Working pressure of 1500psi & 3000psi.
- SS 316 construction for corrosion resistance,full or reduced bore for excellent flow.3 piece design
- Ball hard chrome plated for smooth operation.
- Free floating ball design provides seat wear compensation

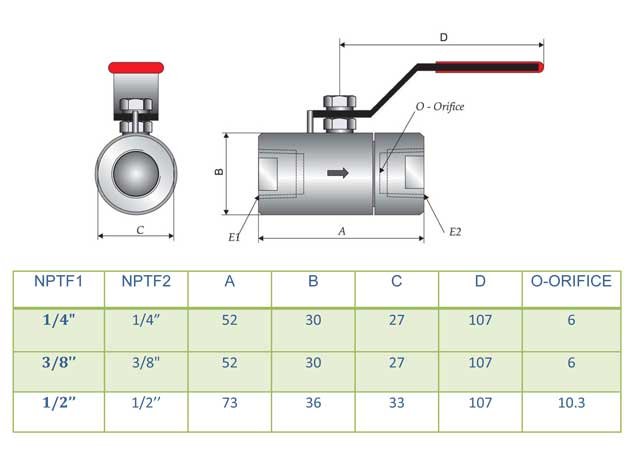

Size
Specifications
- Design : fire safe design, teflon lined, jacketed design, multiport design, PTFE lined.
- End connections: screwed ends to BSP,NPT,BSPT socket weld ends to ANSI B 16.11 inspection.
- Each Valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing,
Application
- Construction industry
- Instrument Air Lines
- Chemicals industry
- Low Pressure Instrument Lines
- General Plant Service
