Operating Parameters
Pressure Rating : Up to 3000 psig at CWP with PTFE packing seat
Temperature Rating : -45 C to 232 C with PTFE packing and seat

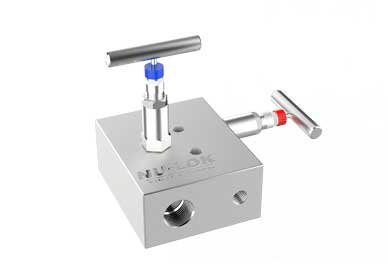

Two Way Manifold Valves Pipe to Pipe
in stock
Feature
- Available in Material SS316, NACE certified on request
- Material Traceable to certified material test report
- Design to 4:1 safety factor
- Low operating torques
- Anti Blow-out stem, non-rotating self centering stem tips.
- PTFE packing standard, Graphite packing for high
- temperature and to meet fire testing to API 607
- Convenient method of blocking, bleeding and calibrating pressure instruments.
- Designed for connection system impulse line & transfer
- Combine the function of a tee, calibration valve, isolation
- valve, all tubing and fittings in a single valve configuration.
- Standard port sizes up to 1/2” NPT/BSPP/BSPT

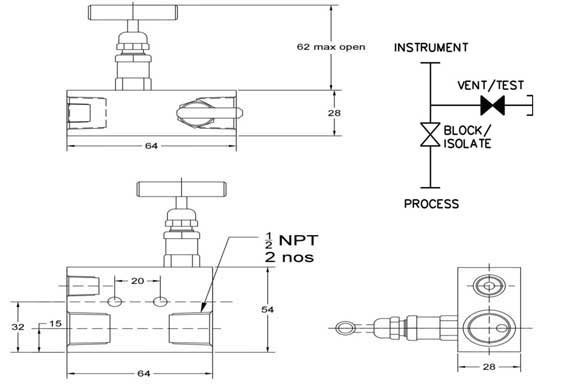

Outer Dimensions
Application
Chemicals industry
Fats and fertilizer industry
Construction industry
